Tensile Strength Testing Machine Adjustable Angle Servo Tensile Testing Machine

SL-T809 Adjustable Angle Servo Tensile Testing Machine

• Purpose

  Angle adjustable 0-90 degrees, for 1 kg / 2 kg / 5 kg / 10 kg / 20 kg / 50 kg tensile, peel strength and extension of test.

  Technical parameters

  Power units	KG, N, LB, g
  Capacity to choose	1 kg / 2 kg / 5 kg / 10 kg / 20 kg / 50 kg
  Loading precision	less than 0.5%
  Power analytic	1/10000; Test range: 200 mm (excluding fixture distance)
  Effective space	120 mm diameter scope; Motivation: servo motor
  Test speed	5.1-500 - mm/minute
  Set the computer; Fast automatic return button	automatically, the computer set speed
  Outage way	upper and lower limit security setting, the emergency stop button, strength and elongation set program and specimen breakpoint sensor
  Size	65 * * 28 and 56 cm
  Weight	40 kg
  Power supply	1 p, AC200 ~ 240 v, 50 ~ 60 hz
  The machine structure	ball screw, when gauge belt, linear slider, fine aluminum alloy bar; Clamp (and in accordance with the contract) of choose and buy: equipped with basic jig 1 set (can choose and buy other clamp or pneumatic); Computer online (to buy) : computer online equipment (line 1, decryption card 1, 1 program CD) (P4, please bring your own computer, Windows XP)

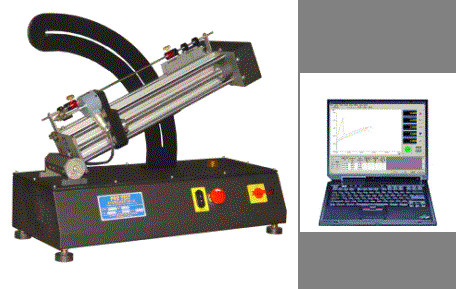

Tensile Strength Testing Machine Adjustable Angle Servo Tensile Testing Machine Images
